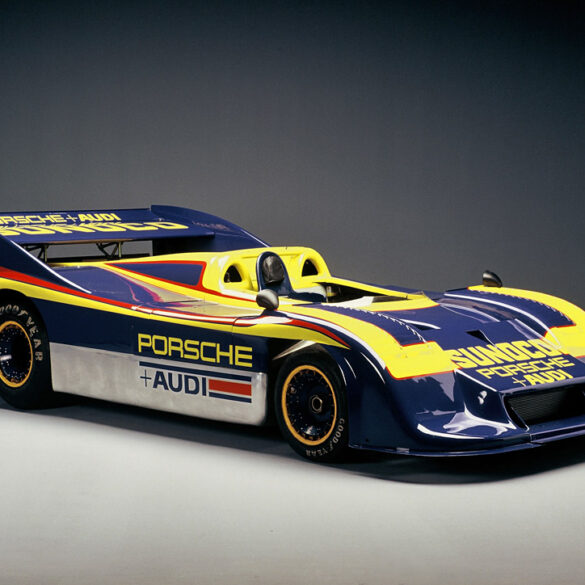

Porsche 908, 909 and 917 racing cars were the brainchilds of engineering genius Ferdinand Piëch, the grandchild of Ferdinand Porsche and nephew of Ferry Porsche. The 917 was the only Porsche model produced with the 12-cylinder engine and experimentally even with the 16-cylinder. When the new rules for the International Championship for Sports Cars were made public at the end of 1967, the team in Stuttgart-Zuffenhausen decided to build a new race car for the under-five-liter class. As the successor to the successful 907 and 908 types, the 917 got an air-cooled twelve-cylinder engine. Powered by the Type 912 flat-12 engine of 4.5, 4.9, or 5 litres, the 917/30 Can-Am variant was capable of a 0-62 mph (100 km/h) time of 2.3 seconds, 0–124 mph (200 km/h) in 5.3 seconds. The long tail Langheck version had a maximum measured top speed of 362 km/h (225 mph). It was dominant, scary and probably the most insane racecar ever built.
Porsche 917 Basics
Manufacturer: Porsche / Production Years: 1969 - 1973 / Designer: Hans Mezger / Layout: Rear mid-engine, rear-wheel-drive layout / Engines: 4.5 L Type 912 Flat-12, 4.9 L Type 912 Flat-12, 5.0 L Type 912 Flat-12, 5.4 L Twin Turbo Flat-12 / Transmission: 4 or 5-speed manual / Premiere: 1969 March 12 at Geneva motor show (Salon de l’Automobile Genève) press day / Achievements: Le Mans winner 1970-1971, International Championship for Makes winner 1970-1971, Interserie winner 1970-1971-1972-1973-1974, Can-Am winner 1972-1973 / Predecessor: Porsche 908 / Successor: Porsche 936
Porsche 917 Development
Few race cars have attained the same notoriety as the 917. It was dangerously quick and also reliable enough to win Porsche’s first overall victory at Le Mans in 1970. The feat was repeated in 1971 and the 917 has now become an icon of Porsche performance. Even more so after being extensively featured in Steve McQueen’s film, Le Mans.
It’s true that Porsche took their most daring step forward with the 917, but it followed a long and progressive development of sports racing prototypes. Until the 917, Porsche and Ferdinand Piëch had made very successful sports race cars limited to the smaller classes. These included the 904 Carrera GT, 906, 908, but they were often behind the GT40 and Ferrari Prototypes which would take overall victory.
In April 1968, the CSI reduced the minimum required production for sports car homologation from 50 to 25 cars. This caught the attention of Piëch who considered a new sports prototype that could win Le Mans.
The 908 fit well within the new 3.0 liter prototype class, but it was the 5-liter sports car class known as Group 4 which caught their attention. In it were the V8-powered Lola T70 and Ford GT40 MKI which were very capable of outright victories. Porsche decided the only way to win the World Sports Car Championship was to build 25 copies of a 5.0 liter prototype that would meet the minimum homologation requirements to qualify as a sports car.
After the decision was finalized by Piëch in July 1968, Porsche engineers had 10 months to create an all-new engine and produce 25 complete cars for both the factory and privateers. This risky and expensive investment eventually paid off and positioned Porsche at the top of motor sport.
Engineering

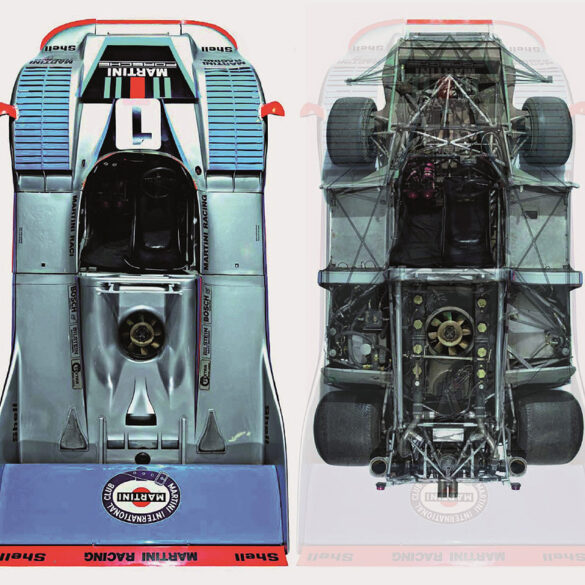

Using the 908's design as a framework, Porsche engineers took the bold task of making the most powerful and lightweight race car possible. They used a chassis structure similar to the 908’s, but it used aluminum instead of steel. The spaceframe chassis weighed only 93 lbs (42 kg). To have enough room for the large engine and driver in the small chassis, the foot well and pedals extended past the front wheels.

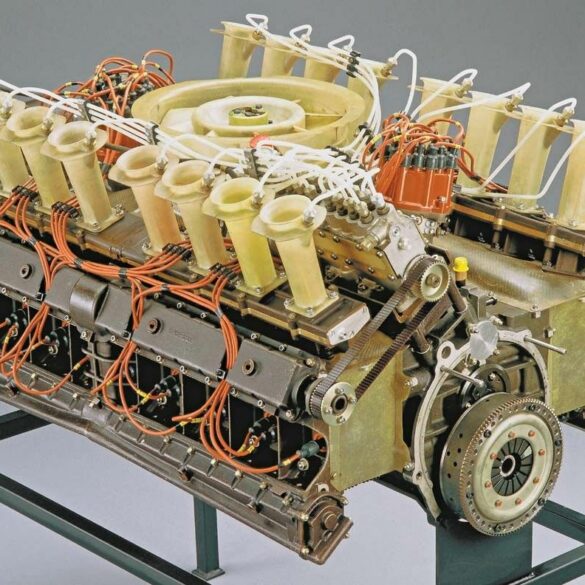

An air-cooled engine, called the type 917.910, was similar to the 908’s, but had an entirely new bottom end. Instead of a boxer arrangement, the 917 used a 180º Flat-12 crankshaft which allowed opposite connecting rods to share crankshaft bearings.
This made the engine more compact which was a primary concern. Timing gears were centered in the middle of the block which essentially split the engine in two. Cooling was provided by an electrically powered fan that sat in between the intake trumpets and was exposed through the bodywork.

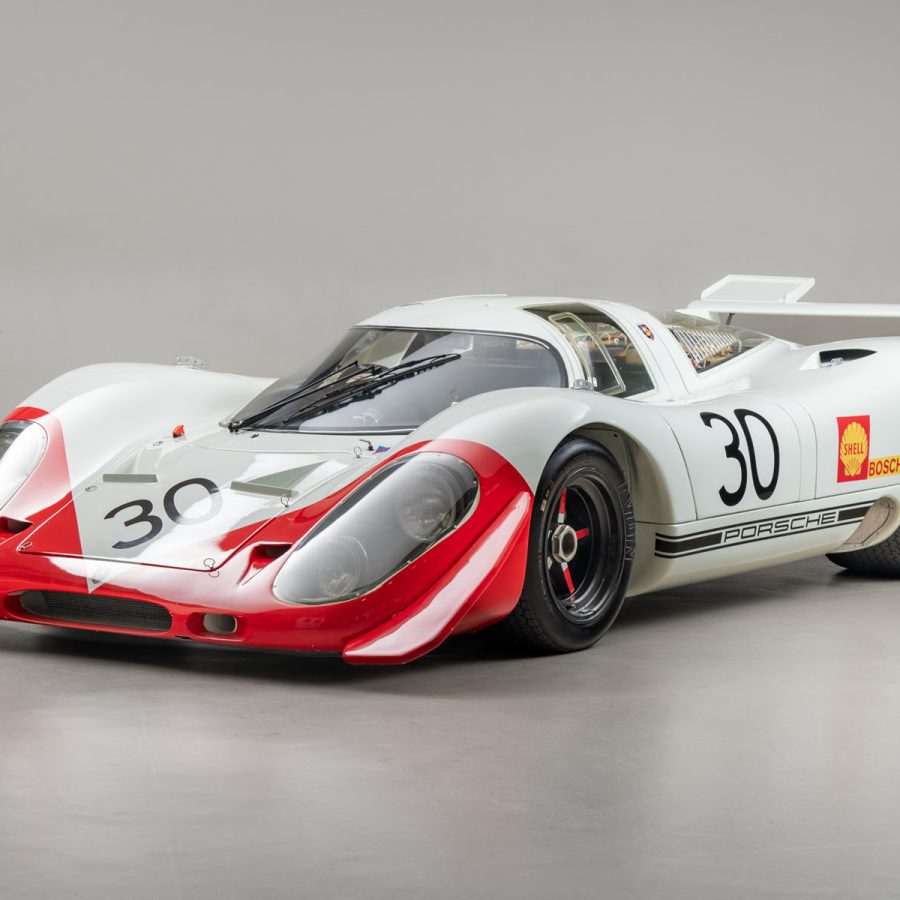

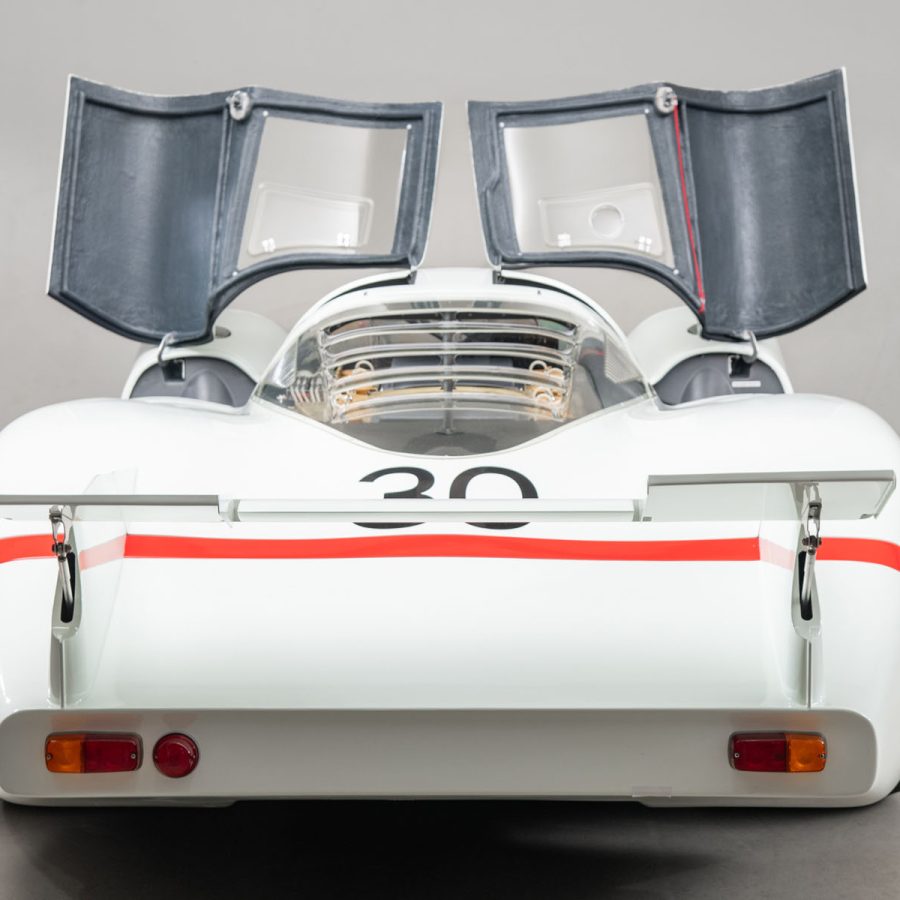

Displacing under 4.5 liters, power was initially rated around 580 bhp. Each unit took over 160 hours to complete and was made of exotic alloys, magnesium and titanium. Access to the engine was provided by a completely removable rear body section which could be changed to high-downforce or low-drag configurations. For the brief 1969 season, a long swooping tail was used with a full size adjustable rear wing.
Porsche 917 Racing

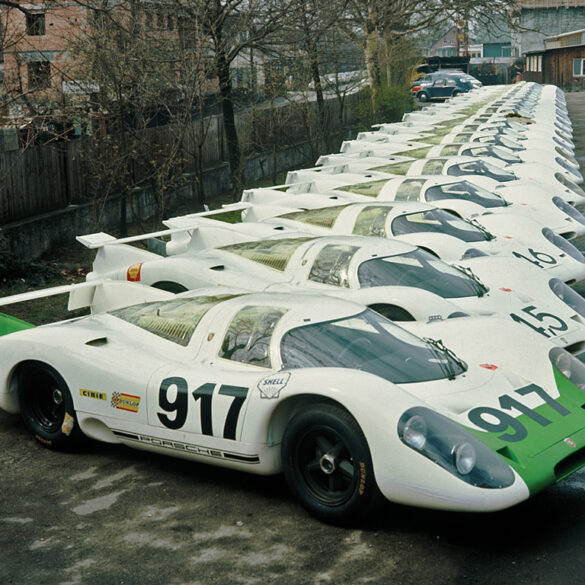

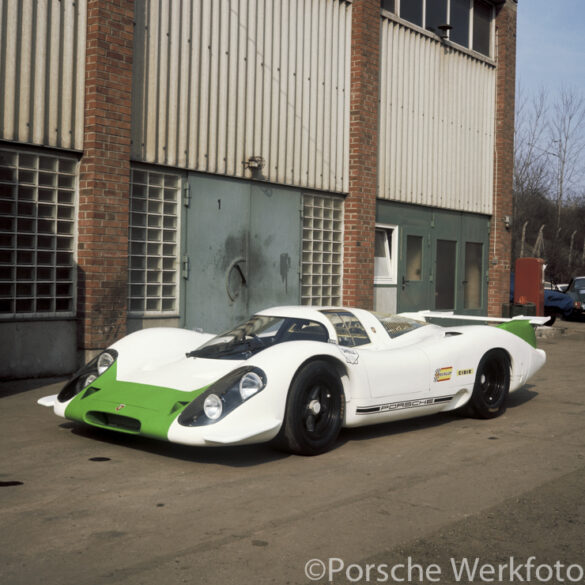

Porsche first revealed the 917 to the press at the 1969 Geneva Motorshow. This was followed by an intense CSI homologation inspection, demanding that all the cars needed to be complete before the car could race. Remarkably, Porsche produced eight more cars in three weeks to complete the necessary 25 cars. On April 1st, 1969 the 917 was homologated just in time for Le Mans.
During initial tests, the 917 was found to be particularly unstable and many driver’s began to have doubts about its design. At the 1000km of Spa, a long tail 908 was chosen in favor over the 917. Before the 917 hit Le Mans, it debuted at the 1969 Nürburgring 1000km and in the hands of David Piper and Frank Gardner. No factory drivers would chose the 917 and instead piloted 908 Spyders to a 1-2-3-4-5 victory. The 917 trailed in eighth place.
Leading up to Le Mans, many drivers were cautious about the 917. 917s set the fastest lap in practice and looked to have all the right ingredients to win. Three cars were entered in the race, two factory entries and one loaned to John Woolfe Racing. Unfortunately, John Woolfe suffered a fatal crash on the very first lap which was later attributed to his seat belt and lack of experience. The remaining 917 team cars led for around 300 laps before both dropped out with clutch bell housing problems.

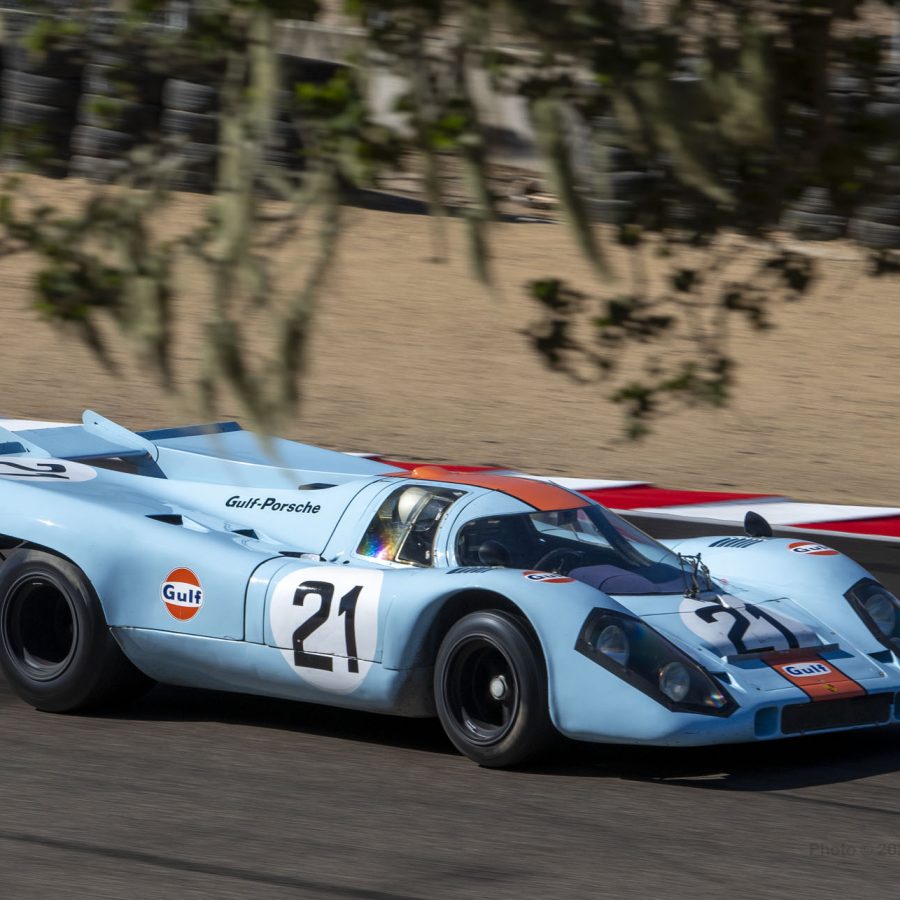

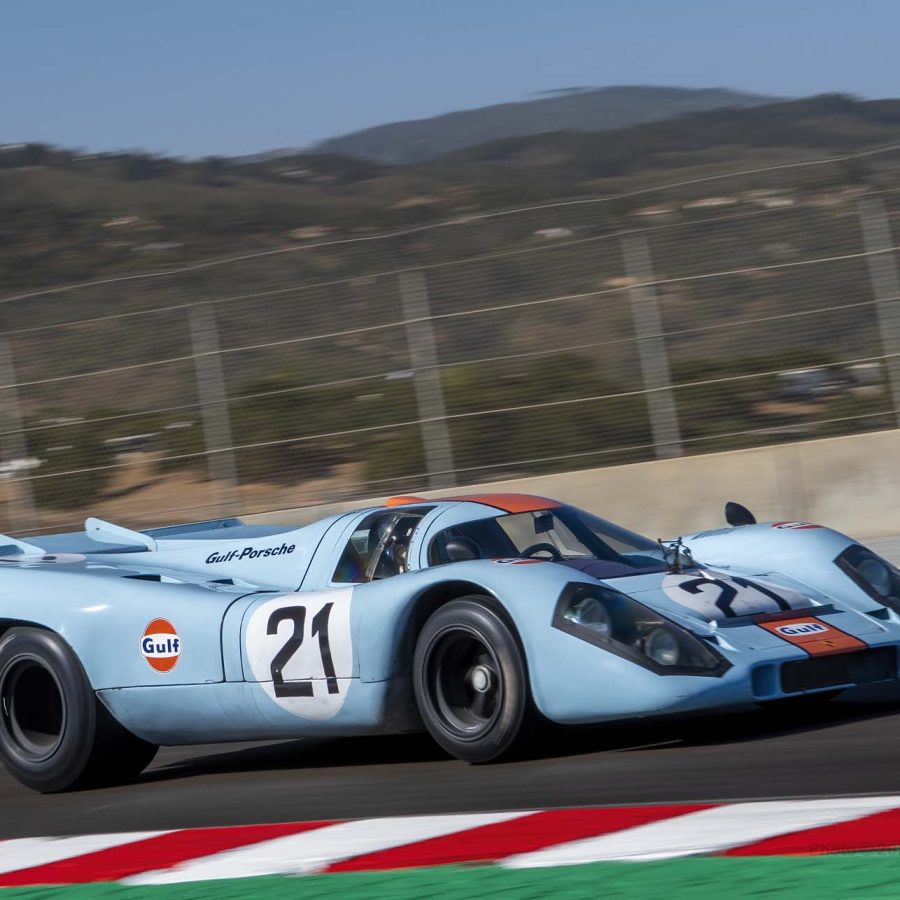

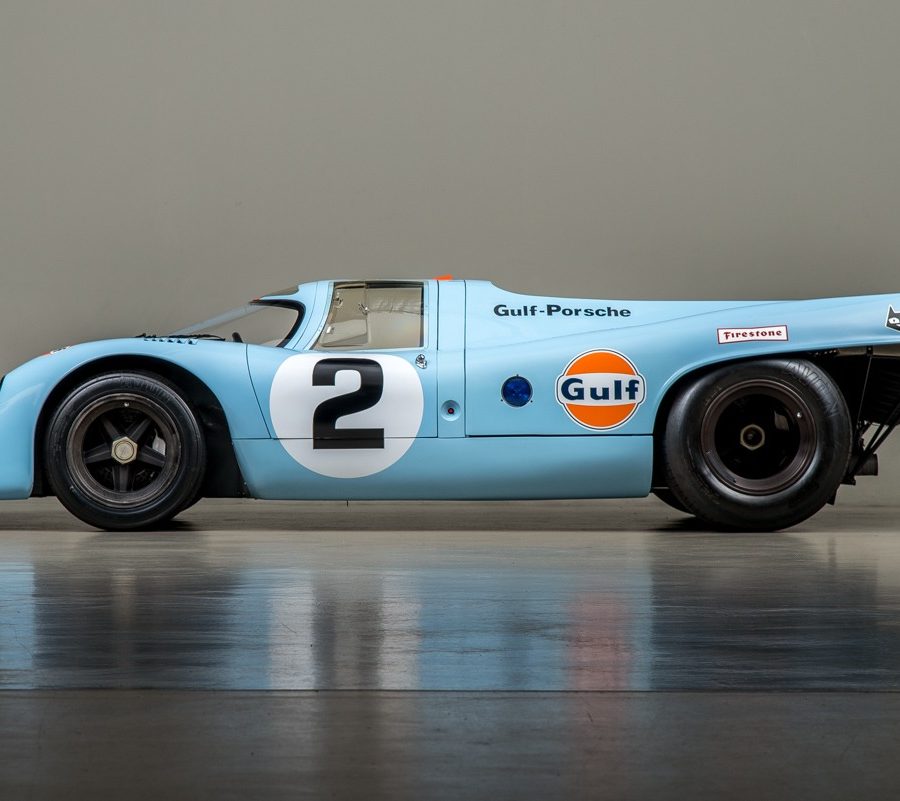

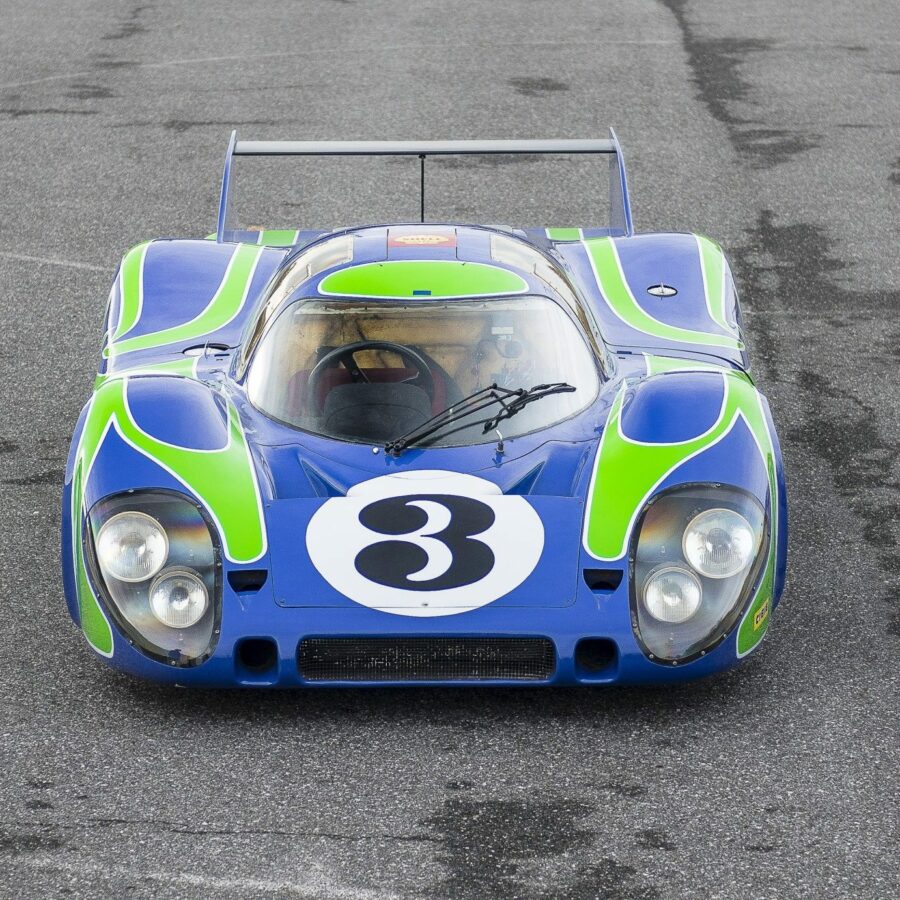

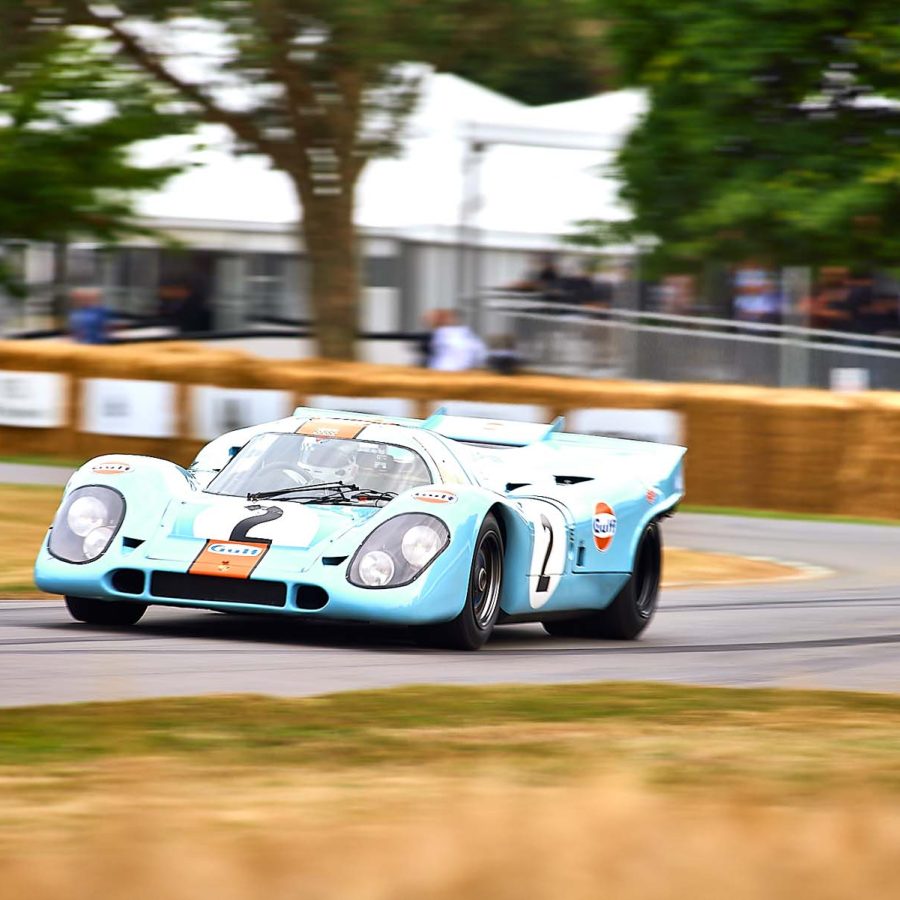

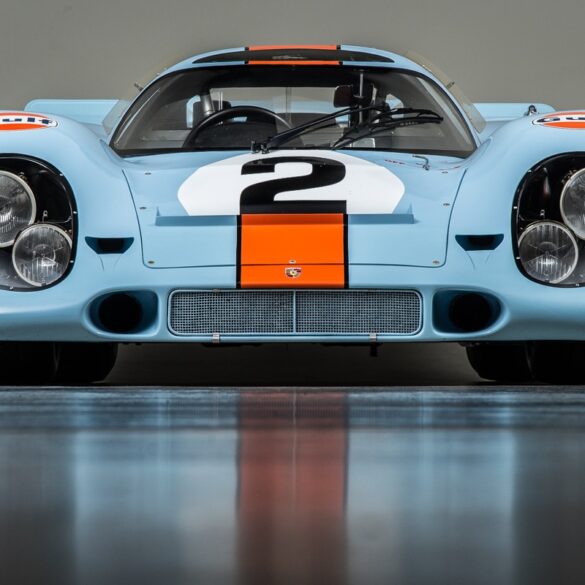

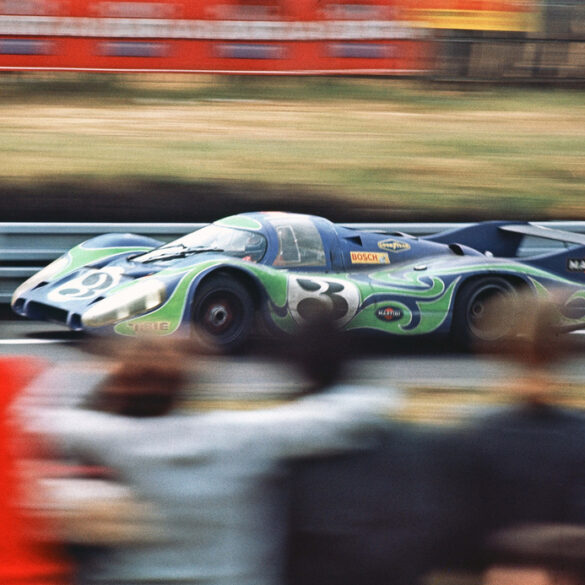

For the 1970 season, 917s were sold to Martini Racing, JWA Gulf Racing and Porsche Salzburg—all private teams that would be supported by the factory. Under the direction of John Wyer, the engineers at JWA tackled the handling problems first discovered in testing. Wyer’s engineer, John Horsmann, came up with a solution to hack off the rear section of the bodywork and replace it with a new aluminum section. This greatly improved stability. Porsche later made revised tail sections for most of the cars and called the cars Kurzheck or 917K. Surprisingly, another low-drag version was designed by Robert Choulet. Known as the Langheck, it was intended to achieve big top speeds down Mulsane Straight.
Porsche also experimented with the boring out the engine to a new 4.9 liter configuration which produced 20 additional horsepower. Later, it was found that these engines put too much strain on the gearbox.

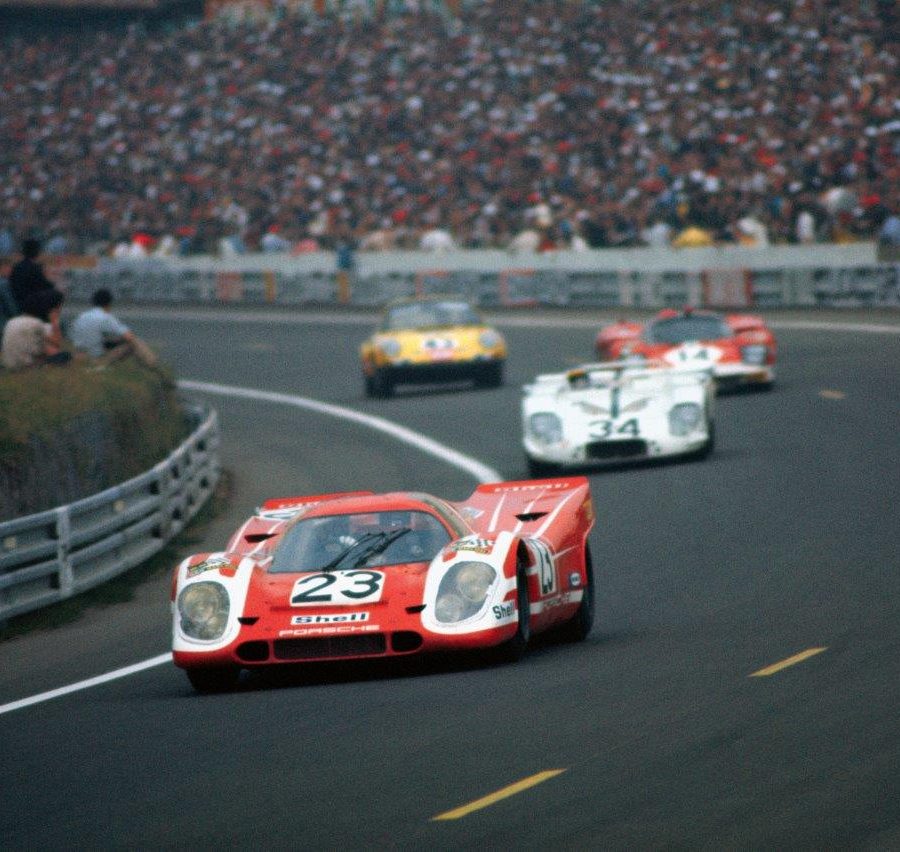

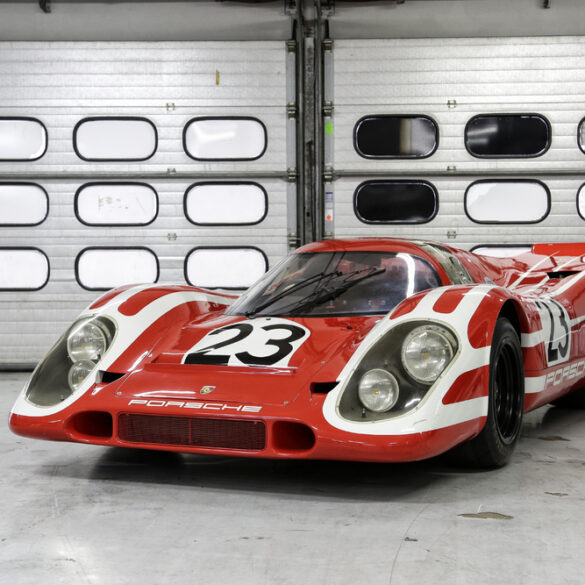

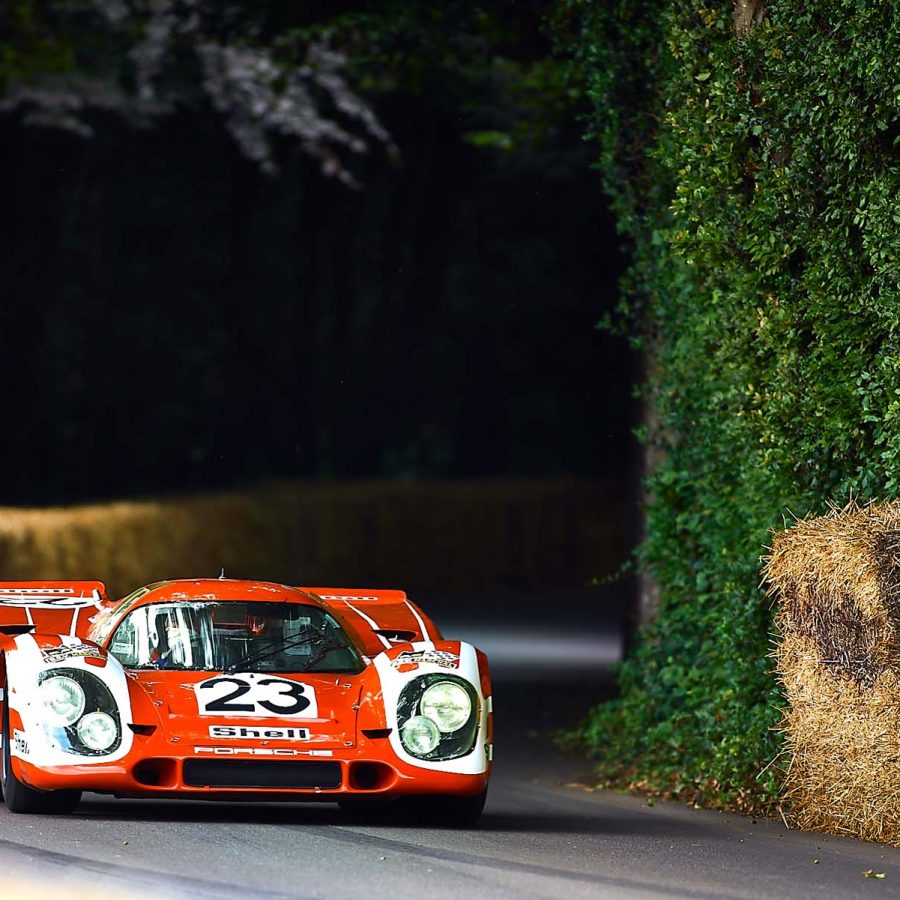

For the 1970 season, Porsche faced Ferrari’s own 512S which was underpowered and overweight by comparison. Even though Ferrari brought out eleven cars, Porsche success through quazi-works teams was practically guaranteed. Only an hour and half into the race, the Ferraris were trailing. Through heavy rain and storms two 917s finished ahead of a 3.0-liter 908. Hans Herrmann and Richard Attwood drove their Salzburg red and white 917K to Porsche’s first overall victory at LeMans.

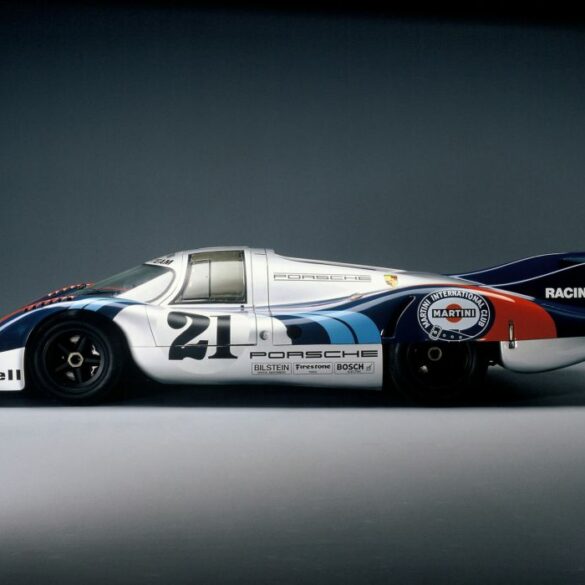

For the 1971 Season, Porsche faced some new competition including Roger Penske’s 600 bhp 512S and the Alfa Romeo T33/3. To prepare, Porsche revised both the short and long versions of the 917. Both had slight body changes that included vertical fins on the K and LH was changed to reach speeds up to 248 mph.

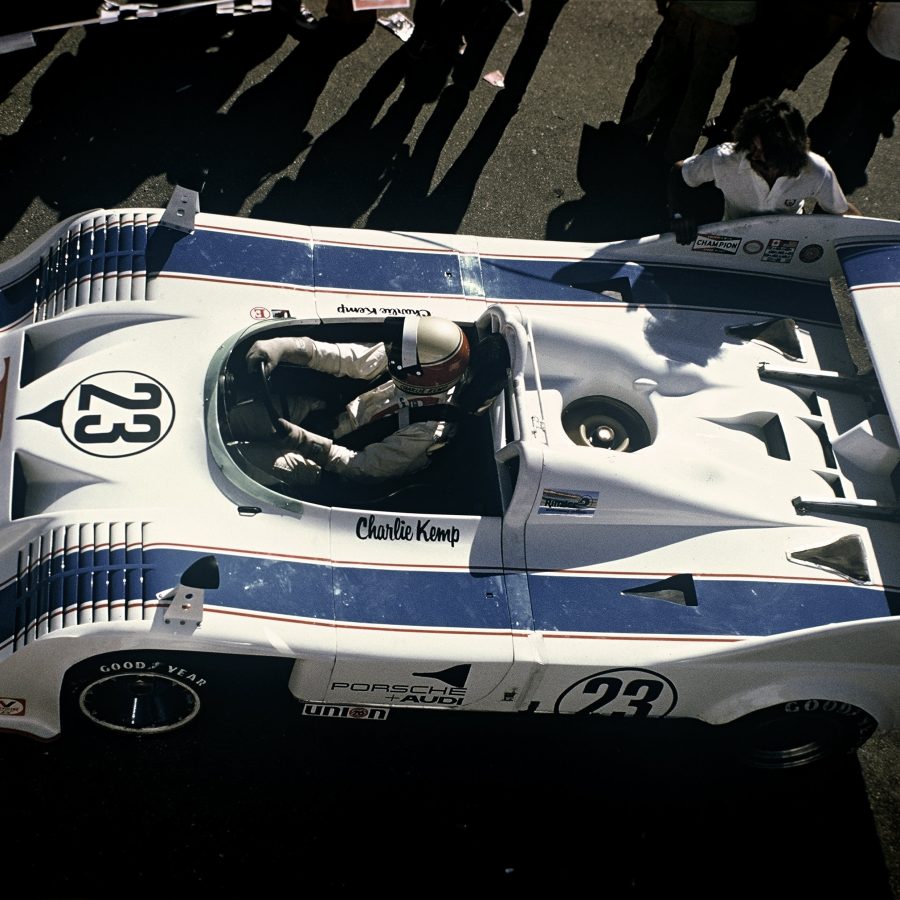

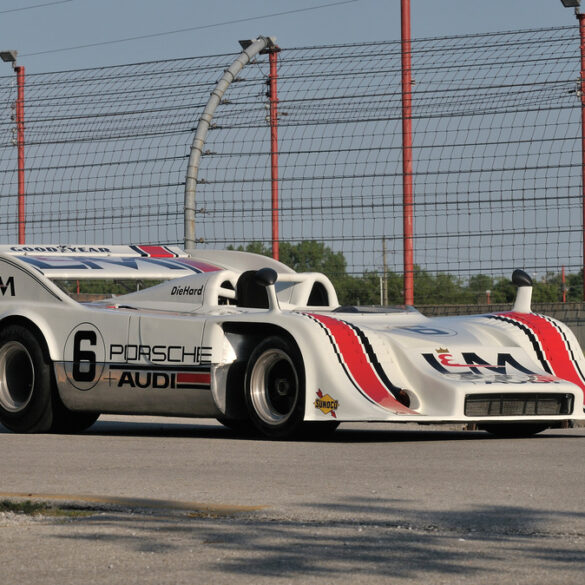

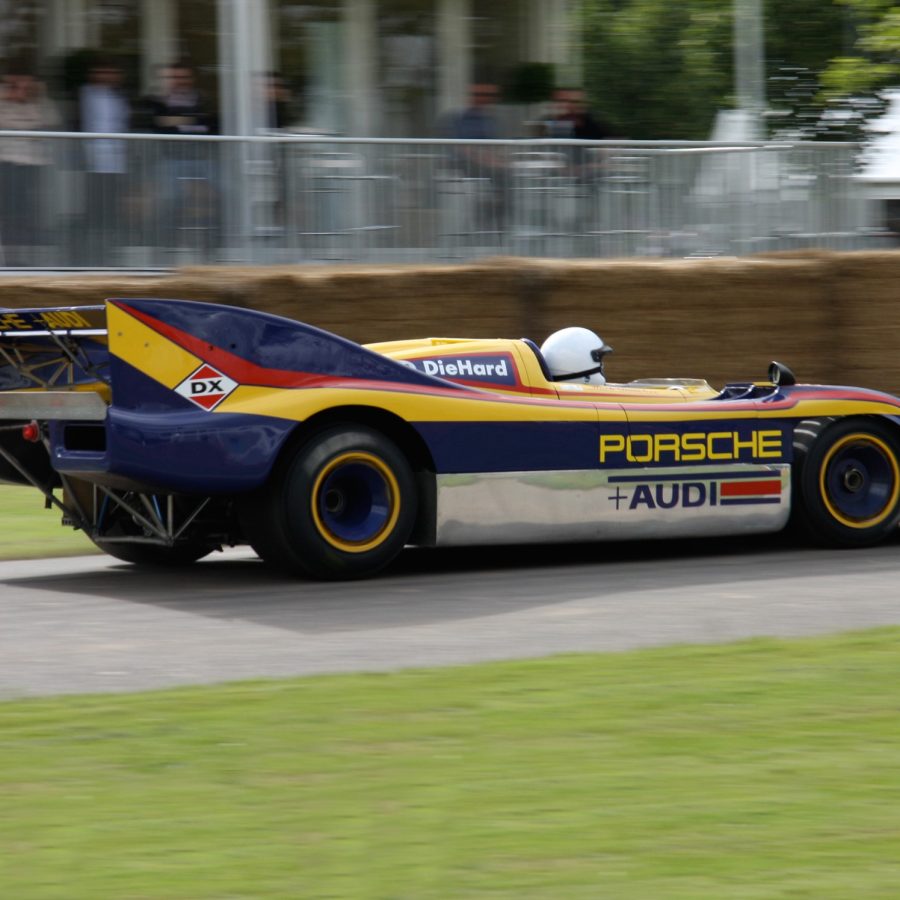

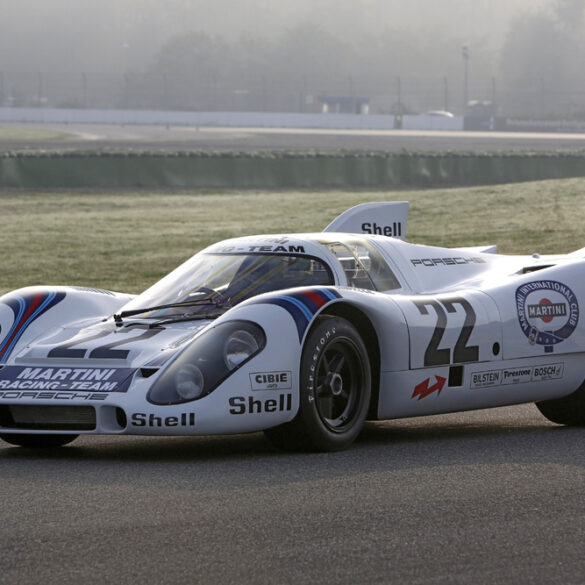

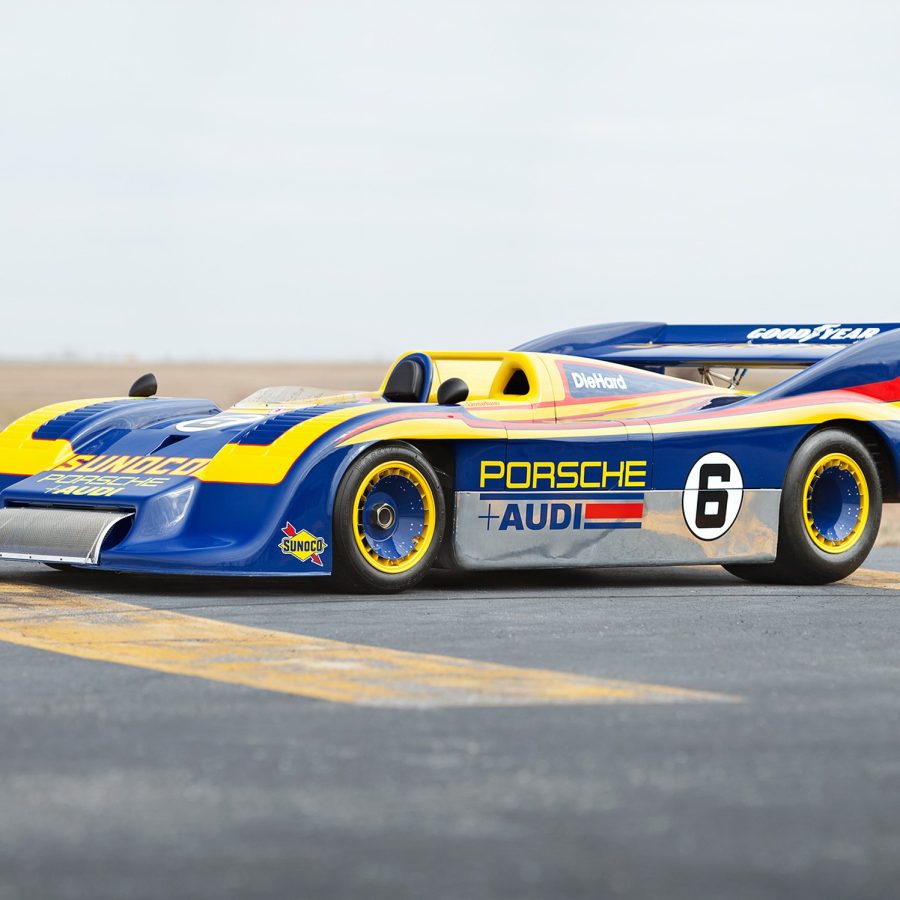

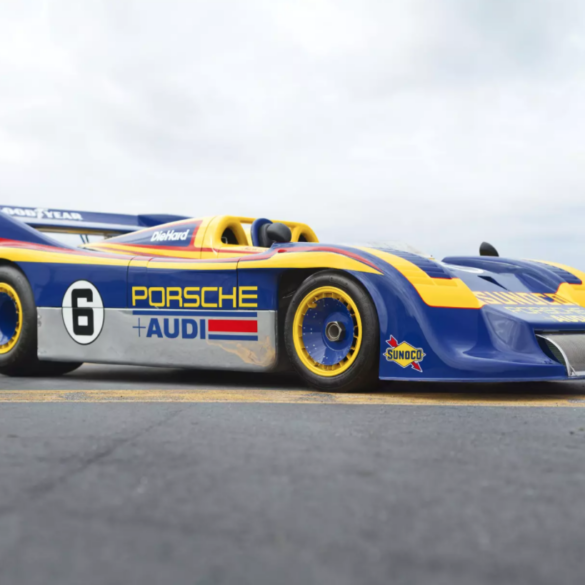

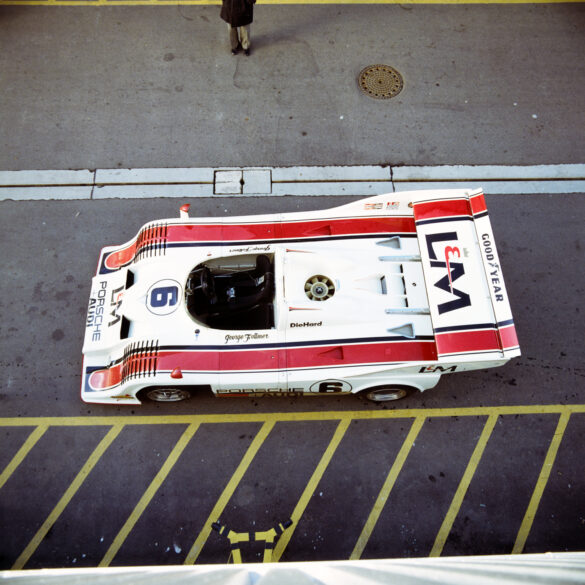

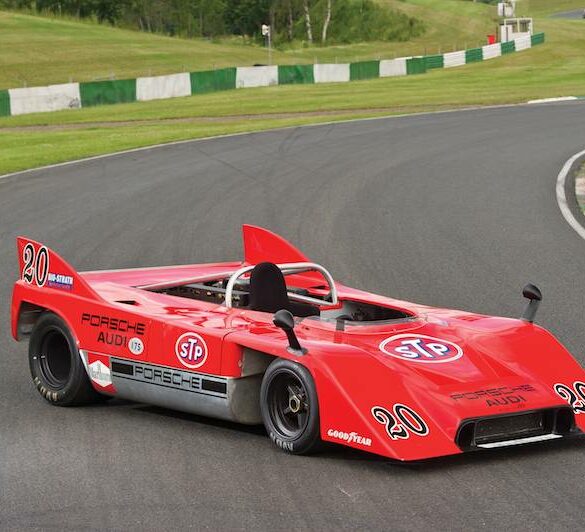

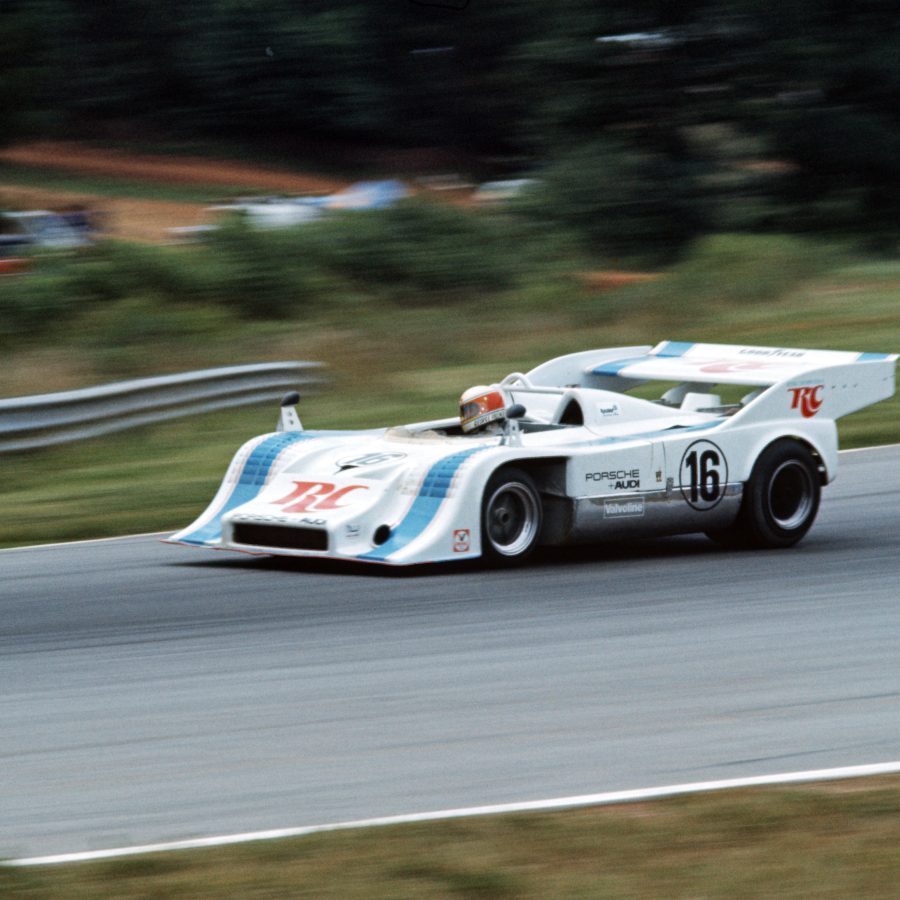

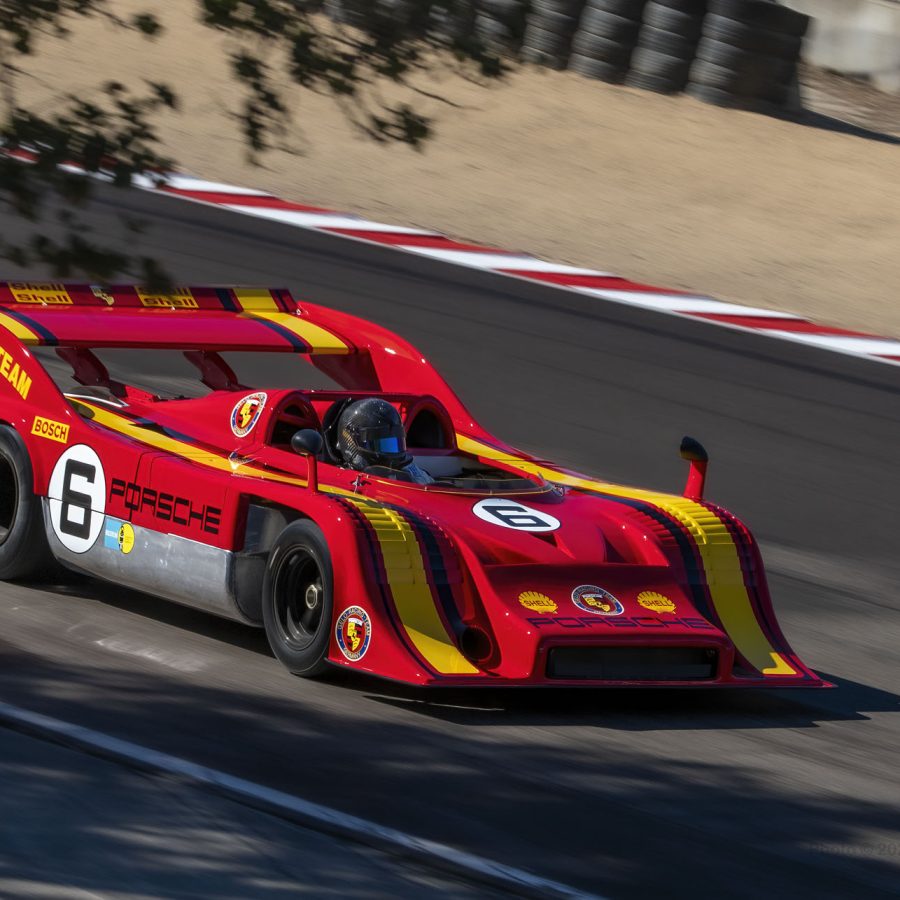

One of the most radical developments for 1971 was a single magnesium frame that was fitted to chassis 053 and raced by JWA/Martini. Painted white, this car placed first overall at Le Mans. It was driven by Helmut Marko and Gijs van Lennep to set an overall distance record. After winning LeMans twice and accomplishing their goals, Porsche had become a power in sports car racing over a three year period. The CSI abandoned Group 4 leaving the 917s to contest other series. Later versions of the 917 were prepared for CanAm and featured turbocharged engines that could produce in excess of 1100 bhp.
Porsche 917 Model Guides
There’s no shortage of prominent number combinations at Porsche, but the sequence 9-1-7, at least when it comes to racing, is the most famous of all. It stands not only for the most powerful and fastest Porsche race car to date, but also for an entire generation of racing cars that only changes to the rules—not competitors on the track—could stop. Between 1969 and 1973 a total of 13 "versions" of the Porsche 917 were made. Below we go through each one in our individual model guides.
